CMM Inspection

Our on-site inspection capabilities include:

  • complete dimensional inspection
  • contract inspection (3rd-party inspection)
  • reverse engineering – data import/export formats include: IGES, DXF/DWG, STEP (v203 & v214), XYZ, DES, DMIS
  • statistical analysis – cpk studies on individual & multiple dimensions

Coordinate Measuring Machine (CMM) Specifications:

Measuring Range:
X= 900 mm (35.4 in.)
Y= 1500 mm (59.1 in.)
Z= 850 mm (33.5 in.)

Weight Capacity:
3000 lbs.

Volumetric Performance:
.0068 mm (.00027in.)

Repeatability:
.0021 mm (.00008 in.)

Annual calibration to ASME B89.4.1-1997 Standard

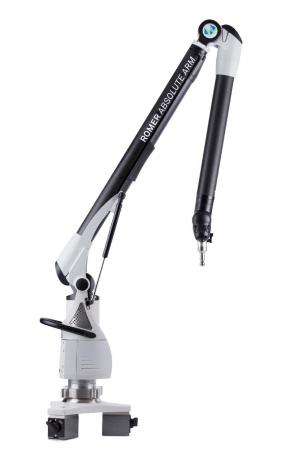

We also have a Romer Arm that allows us more flexibility with our inspections. It gives us the portability and efficiency that greatly benefits a shop like ours.

Romer Arm
